Bistable Rotary Solenoid RSA40/42

Low cost design rotary solenoid developed for use in high-speed sorters (high-speed sorting).
This model has built-in end stops with the operating angle of 30°. It can be easily installed with just one single screw.


Specifications

Travel angle 30°
Service voltage 24 V (duty rate 20% or less)
DC resistance (@20℃) 26 Ω
Inductance (φ=0°) 22 mH
Saturation
temperature rise of coil

Δθs ≈ K x W x 1/f (℃)
K = 17 ℃/W (@20℃)
1/f : Duty rate 〔On Time/(On Time + Off Time)〕

Time constant
of temperature rise		 5 minutes
Heat resistance class Class F (155°C)
Insulation resistance DC 500 V MEGA, Over 100 MΩ
Dielectric strength AC 1000 V, 50/60 Hz, 1 minute
Rotor inertia 12 g·cm2
Mass 900 g
Non-energized
holding torque		 0.015 N・m
Response characteristics
(No-load, horizontally placed)		 6 ms at 24 V
Rotary solenoid RSA40/42

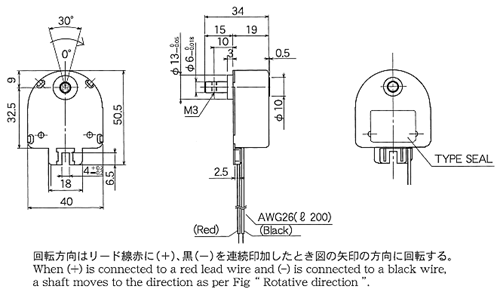

Dimensions

Rotary solenoid RSA40/42 Outside dimension

Torque characteristics

Rotary solenoid RSA40/42 Torque characteristics

　　　Above chart shows torque and angle for CW

　　　rotation. For CCW and details, refer to

　　　Torque Characteristics in Technical Information.
