General-purpose solenoid valves
Product Introduction
Our solenoid valves control the flow of liquids by powering the unit ON/OFF.
Ideal for operations requiring high-speed response and durability.
-
Fast Response Times
Since the valve body is a poppet type that moves directly in the direction perpendicular to the valve seat, high-speed response is possible.
-
Long Life Cycle
Long life cycle due to there being no sliding parts and small stroke movements.
-
Low Valve Seat Leak
When not energized, the valve remains closed and liquid flow is stopped by the spring.
-
High-Pressure Compatible Model also available.
Supports operation from differential pressure 0~0.7MPaG.
-
Custom Specifications Available
Series Comparative Table

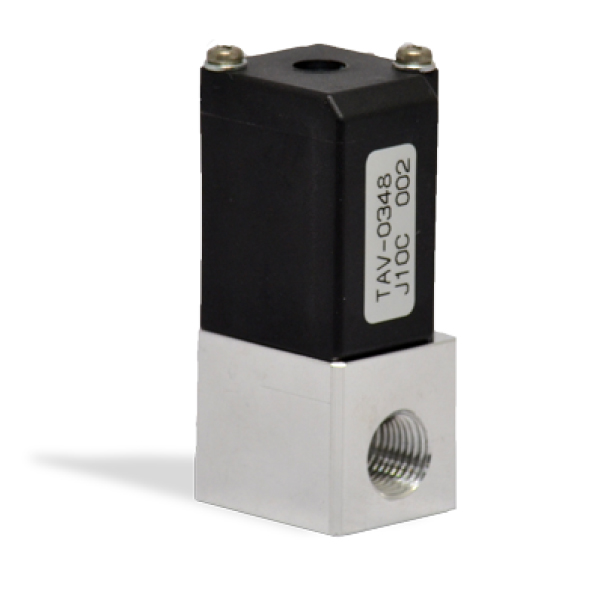

Compact Direct Control 2-Port Solenoid ValveTAV-03 Series
- Width 20mm x Height 43mm Compact Type that can be installed into small spaces.
- Target Durability of 10,000,000 Cycles (with proper parts maintenance).
- Fast Response(Type 0348 Response Time: less than 5ms at 0.5MPaG)
- Customizable material for body and rubber parts.
Applications
- Highly Durable Air Control Drive Unit for Industrial Equipment
- Air Control Drive Unit for Factory Assembly Equipment
| Model | Voltage | Valve Operation |
Cv （Air） |
Operating Pressure Range |
Orifice Diameter |
Fitting size |
Drawings |
|---|---|---|---|---|---|---|---|
| TAV-0312 | Rated 12VDC |
NC | 0.3 | 0～0.2 (MPaG) |
3.0mm | Rc1/8 | |
| TAV-0324 | Rated 24VDC |
NC | 0.3 | 0～0.2 (MPaG) |
3.0mm | Rc1/8 | |
| TAV-0348 | Initial 48VDC Holding 8VDC |
NC | 0.3 | 0～0.7 (MPaG) |
3.0mm | Rc1/8 |

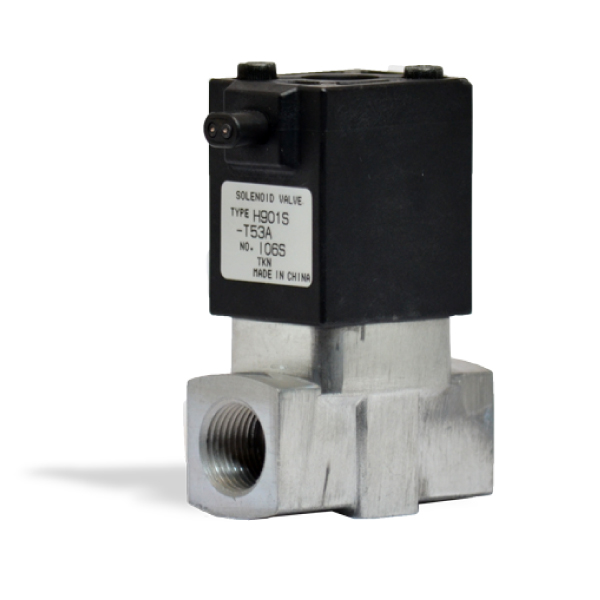

Direct Control 2-Port Solenoid Valve TAV-08 Series
- Power-saving type that can hold the valve open at 8V after initially opening the valve at 48V.
- 0.7MPaG high pressure compatible, 5.5ms response time（at0.5MPaG).
- Target Durability of 3,000,000 Cycles(6,000,000 Cycles with proper parts maintenance).
Applications
- Highly Durable Air Control Drive Unit for Industrial Equipment
- Air Control Drive Unit for Factory Assembly Equipment
| Model | Voltage | Valve Operation |
Cv （Air） |
Operating pressure range |
Orifice Diameter |
Fitting size |
Drawings |
|---|---|---|---|---|---|---|---|
| TAV-0848 | Initial 48VDC Holding 8VDC |
NC | 1.0 | 0～0.7 (MPaG) |
8.0mm | Rc3/8 |

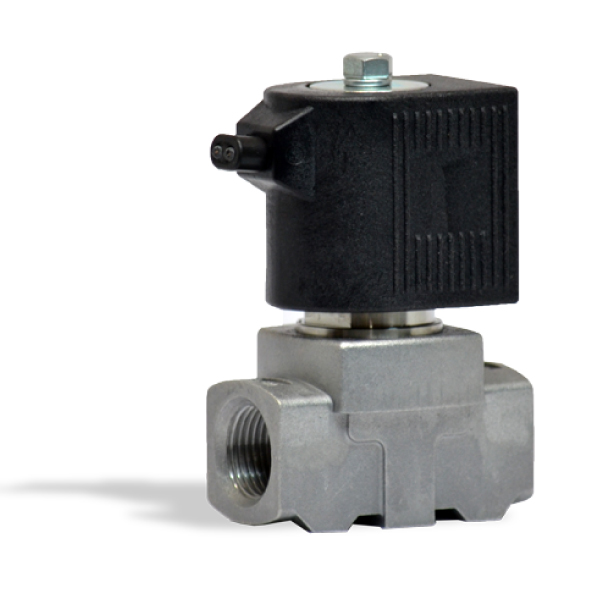

Direct Control 2-Port Solenoid ValveValveTAV-14 Series
- Power-saving type that can hold the valve open at 8V after initially opening the valve at 48V.
- 0.7MPaG high pressure compatible, 5.5ms response time（at500kPaG).
- Target Durability of 2,000,000 Cycles(6,000,000 Cycles with proper parts maintenance).
Applications
- Highly Durable Air Control Drive Unit for Industrial Equipment
- Air Control Drive Unit for Factory Assembly Equipment
| Model | Voltage | Valve Operation |
Cv （Air） |
Operating pressure range |
Orifice Diameter |
Fitting size |
Drawings |
|---|---|---|---|---|---|---|---|
| TAV-1448 | Initial 48DCV Holding 8VDC |
NC | 1.7 | 0～0.7 (MPaG) |
14.0mm | Rp3/8 |
