Bistable Rotary Solenoid RSA32/47-C

Low cost design rotary solenoid especially developed for use in high-speed sorters (high-speed sorting).
This model has built-in end stops with the operating angle of 20°. It can be easily installed with just one single screw.


Specifications

Travel angle 20°
Service voltage 24 V (duty rate 20% or less)
DC resistance (@20℃) 20 Ω
Inductance (φ=0°) 13 mH
Saturation
temperature rise of coil

Δθs ≈ K x W x 1/f (℃)
K = 17 ℃/W (@20℃)
1/f : Duty rate 〔On Time/(On Time + Off Time)〕

Time constant
of temperature rise		 5 minutes
Heat resistance class Class F (155°C)
Insulation resistance DC 500 V MEGA, Over 100 MΩ
Dielectric strength AC 500 V, 50/60 Hz, 1 minute
Rotor inertia 10 g·cm2
Mass 60 g
Starting torque
(24VDC)		 20 mN・m
Non-energized
holding torque		 15 mN・m
Response characteristics
(No-load,horizontally placed)		 6 ms at 24 V
Rotary solenoid RSA32/47

Dimensions

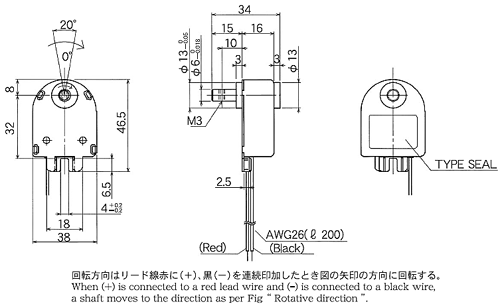

Rotary solenoid RSA32/47 Outside dimension
