Optical Filter Switching

Ideal actuator for switching filters (IR‑cut, visible‑light‑cut, band‑pass, ND)

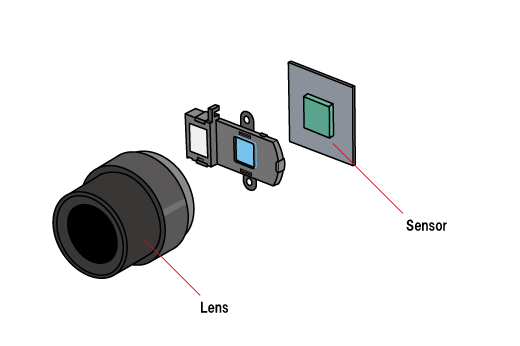

Optical Filter Operation

Practical Example

Example of optical filter switching

◆ Recommended Products — Optical Shutter Solenoids

RSF26/20 RSR28/17 RSU14/10 RSR10/15 RSR7/10 MLS‑0808

◆ Selection Points

  • Optimal actuator for switching optical filters that absorb, transmit, or reflect specific wavelengths.
  • Ideal for optical devices used day and night, enabling IR‑cut, visible‑cut, band‑pass, and ND filter selection to toggle between visible and infrared night‑vision modes.

◆ Typical Applications

  • Surveillance, automotive, and fundus cameras
  • Infrared thermography
  • Visible / IR spectrometers
  • Medical imaging equipment
  • Telescopes and surveying instruments
