Rotary Solenoids with Built−In Stops

RSF26/20-CS38-G020

This model was developed for use in high-speed sorters (high-speed sorting).
This model has built-in end stops with the operating angle of 37.5°.
It can be easily installed with just one single screw.

PDF Download

Main Specifications

Working Voltage 24（V DC）
DC Resistance 20（Ω）
Duty Cycle 20（%）or less
Coil Saturation Temperature Rise
Δθs（at20℃）		 Δθs≒18×W（℃）
K≒18（℃/watt）
Heat-Resistant Class Class F（155℃）
Insulation Resistance 500V DC MEGA, 100MΩ or more
Dielectric Strength 600V AC, 50/60Hz, 1 second
Mass 60（g）
Operating Angle 37.5（°）
Non-Excited Holding Force 0.01（N・m）
Starting Torque※1 0.002（N・m）
Life Cycle/Durability※2 10,000,000（cycles）
Response Speed※3 15（ms) or less
※1
when applied voltage= 24V DC.
※2
durability conditions: measured by Takano Co. in a standard testing environment, with a load of inerta 4.2g・cm2, shaft in a horizontal position, duty cycle 20％, applied voltage 24V DC, using a Takano driver.
※3
measurement conditions: measured by Takano Co. in a standard testing environment, with a load of inerta 4.2g・cm2, shaft in a horizontal position, applied voltage 24V DC.

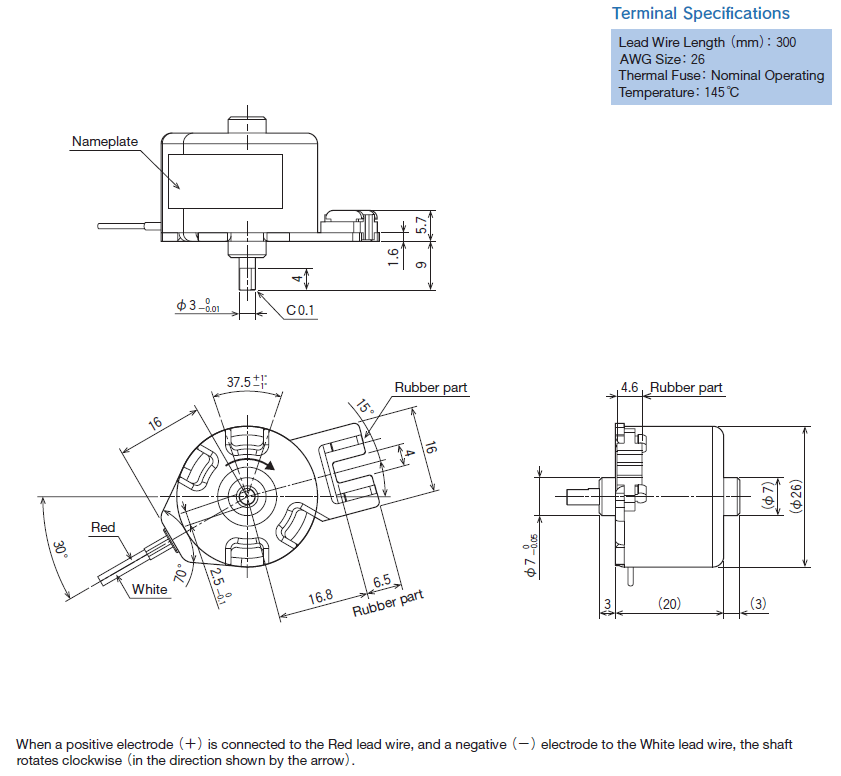

External Dimensions（mm）

For improvement and other purposes, specifications, dimensions, etc. of this product are subject to change without notice.
