Micro rotary solenoid designed as a mechanical drive for small equipment with limited space inside.
Ideal for high-speed shutters of optical systems.
| Heat-Resistant Class | Class E（120℃） |
|---|---|
| Coil Saturation Temperature Rise Δθs（at20℃） |
Δθs≒21.5×W（℃） K≒21.5（℃/watt） |

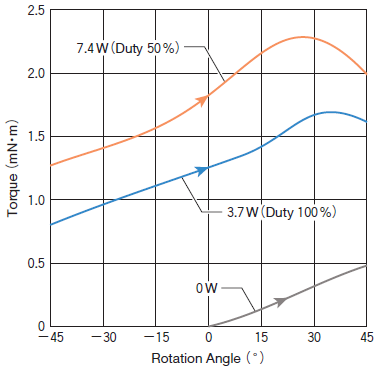

| Temperature Rise Time Constant τ | 0.5（minutes） |
| Insulation Resistance | 500V DC MEGA, 100MΩ or more |
| Dielectric Strength | 500V AC, 50/60Hz, 1 minute |
| Rotor Inertia | 0.017（g・cm2） |
| Mass | 8（g） |
| Duty Cycle [%] | 100% | 50% | 25% | 10% | 5% |
|---|---|---|---|---|---|
| Continuous | Intermittent | ||||
| Max. ON Time [sec.] | ∞ | 15.0 | 7.5 | 3.0 | 1.5 |
| Power at 20℃ [W] | 3.7 | 7.4 | 14.8 | 37.2 | 74.4 |
| Resistance at 20℃ [Ω] | Voltage [VDC] | ||||
| 13.0（standard） | 6.0 | 9.8 | 13.8 | 21.9 | 31.0 |
| 39.0 | 12.0 | 16.9 | 24.0 | 38.0 | 53.8 |

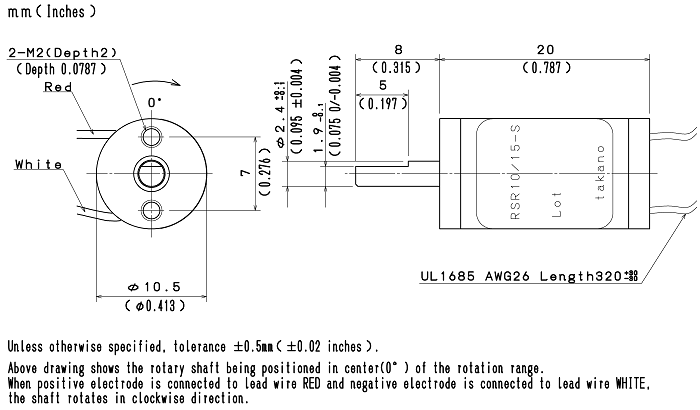

For improvement and other purposes, specifications, dimensions, etc. of this product are subject to change without notice.
