Bi-stable Optical Shutter

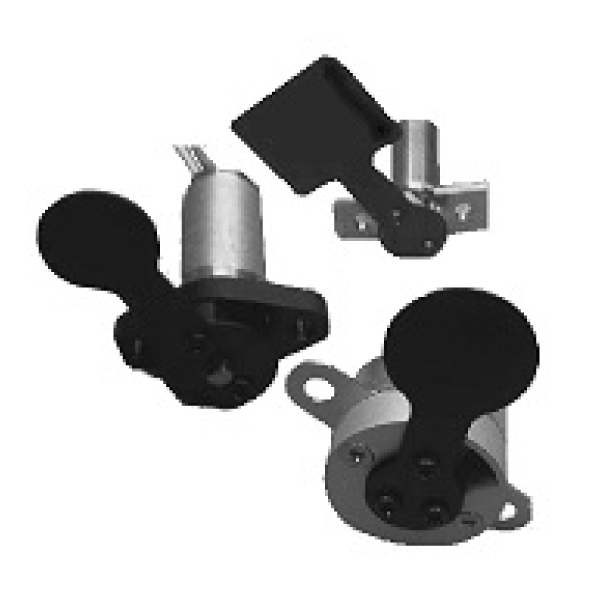

Product introduction

Takano is one of the first company to manufacture bi-stable rotary solenoids. Its 30 years of experience in rotary actuation field enables to provide not just as a single solenoid but also to offer unique optical shutter units with various benefits.


  1. Compact/Lightweight

    Select your model from a range of different sizes, designed to fit into applications with limited space.

  2. Battery-Powered Capabilities

    The built-in permanent magnet allows for low power consumption, making this solenoid shutter remarkably energy-efficient.

  3. High responsive open/close

    Unlike the conventional rotary solenoid based optical shutter, a spring is not used for the motion of the shutter for its open and close. Takano Optical Shutters actuate with the repulsive and attractive magnetic force by switching the current direction. This enables our optical shutter to be extremely high speed and high power.

  4. Extremely long life

    Expected life time is 5 million cycles and over.

  5. Custom design solution

    Takano is ready to utilize our expertise to design and develop custom design solutions to meet your unique requirements in shape, size, angle, characteristics, etc.

Series Comparative Table

Bi-stable Rotary Optical ShutterBOS5-8-T

  • 60° Angle of Rotation
  • Compact/Lightweight
    External Diameter:5×8×5mm, Mass:0.8g　
  • Battery-Powered Capabilities
    The built-in permanent magnet allows for low power consumption, making this solenoid shutter remarkably energy-efficient.
  • High Speed
    Spring is not used for its actuation. The bi-stable magnetic structure generates high power and high responsiveness.

Applications

  • High-speed shutter drive for optical equipment.
  • Shutter drive unit for optical communication devices, infrared cameras, etc.
Video
Model Solenoid
Dimensions
（㎜）		 DC
resistance		 Rated
Voltage		 Angle of
Rotation		 Response
Speed
(3VDC)		 Documents/Drawings
BOS5-8-T 5×8×5 5Ω 3VDC 60° 50ms or less
Brochure(PDF) 2D CAD（DXF） 3D CAD（STEP）

Bi-stable Rotary Optical ShutterBOS7/10-T010

  • 50° Angle of Rotation
  • Compact/Lightweight
    External Diameter:φ7×10mm, Mass:4g　
  • Battery-Powered Capabilities
    The built-in permanent magnet allows for low power consumption, making this solenoid shutter remarkably energy-efficient.
  • High Speed
    Spring is not used for its actuation. The bi-stable magnetic structure generates high power and high responsiveness.

Applications

  • Shutter opening/closing drive for spectral analysis.
  • Shutter drive unit for optical communication devices, infrared cameras, etc.
Video
Model Solenoid
Dimensions
（㎜）		 DC
resistance		 Rated
Voltage		 Angle of
Rotation		 Response
Speed
(3VDC)		 Documents/Drawings
BOS7/10-T010 φ7×10 9.5Ω 3VDC 50° 18ms or less
Brochure 2D CAD（DXF） 3D CAD（STEP）

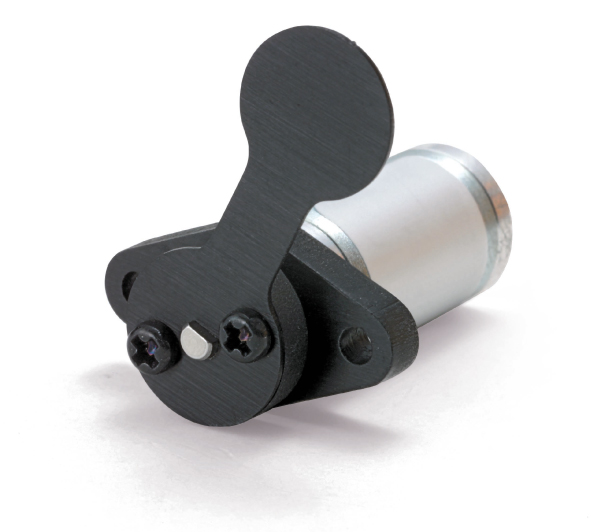

Bi-stable Rotary Optical ShutterBOS10/15-S

  • 50° Angle of Rotation
  • Compact/Lightweight
    External Diameter:φ10×20mm, Mass:11g　
  • Battery-Powered Capabilities
    The built-in permanent magnet allows for low power consumption, making this solenoid shutter remarkably energy-efficient.
  • High Speed
    Spring is not used for its actuation. The bi-stable magnetic structure generates high power and high responsiveness.

Applications

  • High-speed shutter drive for optical equipment.
  • Shutter drive unit for optical communication devices, infrared cameras, etc.
Video
Model Solenoid
Dimensions
（㎜）		 DC
resistance		 Rated
Voltage		 Angle of
Rotation		 Response
Speed
(5VDC)		 Documents/Drawings
BOS10/15-S φ10×20 13Ω 5V 50° 13ms or less
Brochure 2D CAD（DXF） 3D CAD（STEP）
　　　　　　

Bi-stable Rotary Optical ShutterBOS22/08-O035

  • 50° Angle of Rotation
  • Battery-Powered Capabilities
    The built-in permanent magnet allows for low power consumption, making this solenoid shutter remarkably energy-efficient.
  • High Speed
    Spring is not used for its actuation. The bi-stable magnetic structure generates high power and high responsiveness.

Applications

  • Shutter opening/closing drive for spectral analysis.
  • Shutter drive unit for optical communication devices, infrared cameras, etc.
Model Solenoid
Dimensions
（㎜）		 DC
resistance		 Rated
Voltage		 Angle of
Rotation		 Response
Speed
(12VDC)		 Documents/Drawings
BOS22/08-O035 φ22×8 35Ω 12VDC 50° 15ms or less
Brochure 2D CAD（DXF） 3D CAD（STEP）
