Bi-stable Optical Shutter


Main Specifications

Heat-Resistant Class Class E(120℃)
Rated Voltage 3(V DC)
DC Resistance 9.5(Ω)
Coil Saturation Temperature Rise
Temperature Rise Time Constant τ 1(minute)
Mass 4(g)
Shutter Dimensions 12.3×10.3(mm)
Operating Angle 50(°)
Life Cycle/Durability 5,000,000(cycles)
Response Speed with Applied Voltage 3V DC 18(ms)or less
with Applied Voltage 5V DC 13(ms)or less
with Applied Voltage 12V DC 8(ms)or less

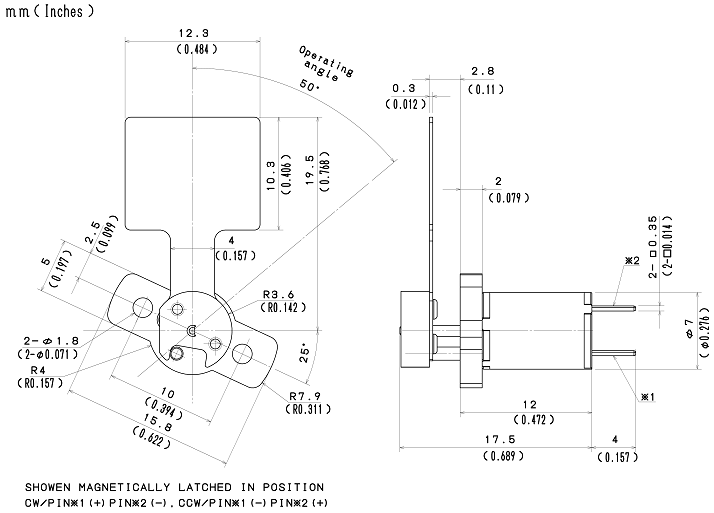

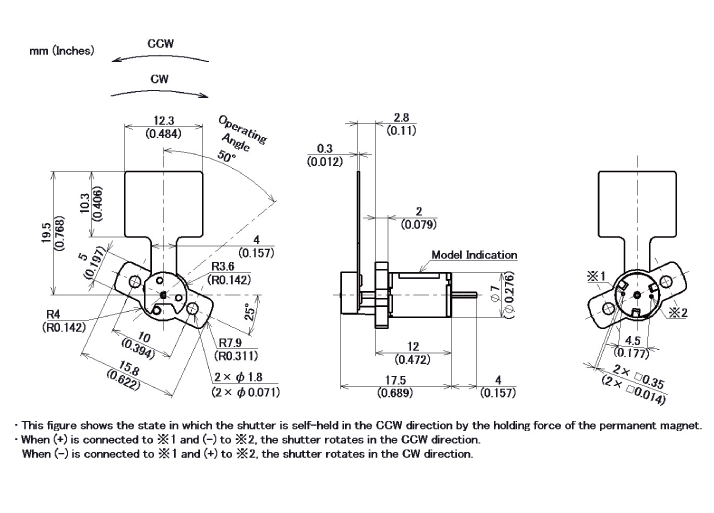

External Dimensions

How to Mount

For improvement and other purposes, specifications, dimensions, etc. of this product are subject to change without notice.
