| Heat-Resistant Class | Class E（120℃） | |
|---|---|---|
| Rated Voltage | 5（V DC） | |
| DC Resistance | 13（Ω） | |
| Coil Saturation Temperature Rise Δθs（at20℃） |
Δθs≒21.5×W（℃） K≒21.5（℃/watt） |
|
| Temperature Rise Time Constant τ | 0.5（minutes） | |
| Mass | 11（g） | |

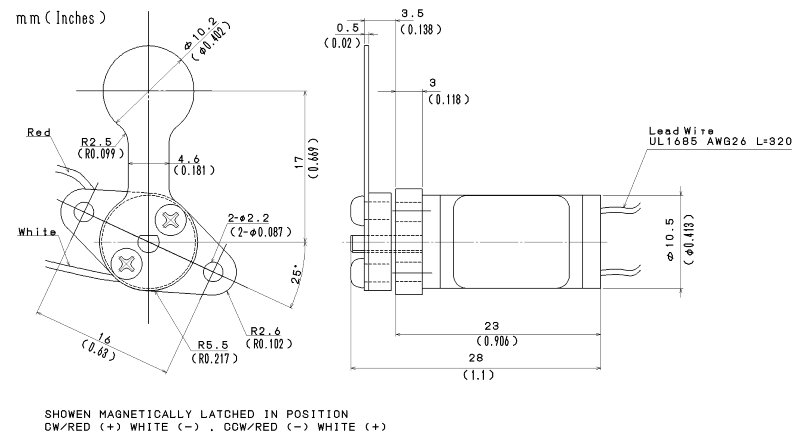

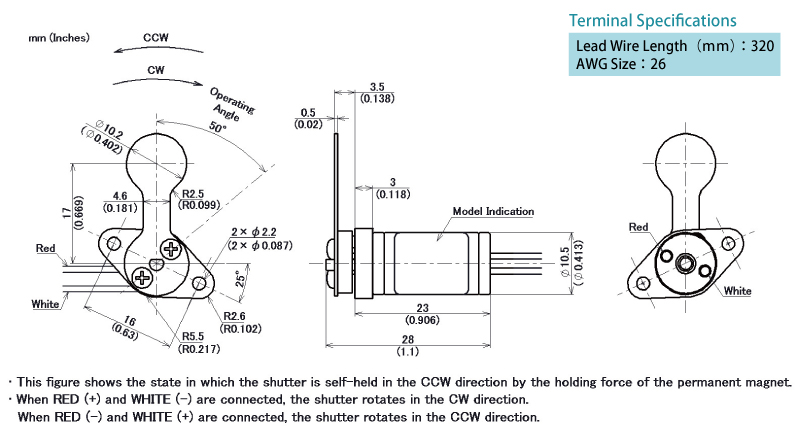

| Shutter Dimensions | φ10.2（mm） | |
| Operating Angle | 50（°） | |
| Life Cycle/Durability | 5,000,000（cycles） | |
| Response Speed | with Applied Voltage 5V DC | 13（ms）or less |
| with Applied Voltage 12V DC | 8（ms）or less | |
For improvement and other purposes, specifications, dimensions, etc. of this product are subject to change without notice.
