Bi-stable Optical Shutter BOS22/08-O035

Bi-Stable Optical Shutter

PDF Download

Heat-Resistant Class		Class H（180℃）
Rated Voltage		12（V DC）
DC Resistance		35（Ω）
Coil Saturation Temperature Rise Δθ_s（at20℃）		Δθ_s≒36×W（℃） K≒36（℃/watt）
Temperature Rise Time Constant τ		6（minutes）
Mass		22（g）

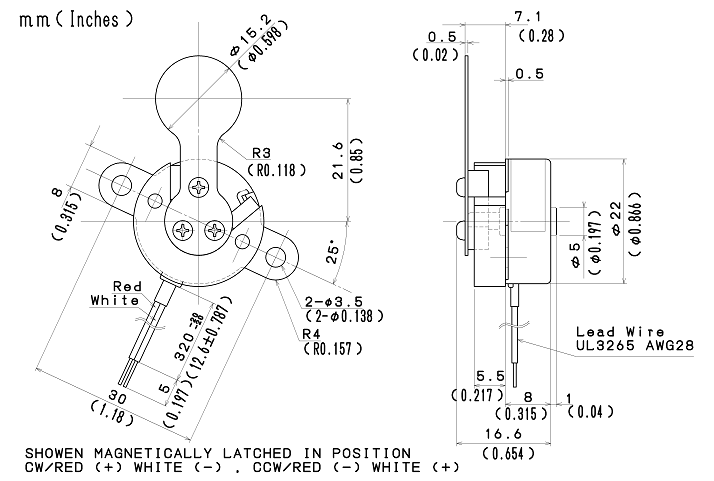

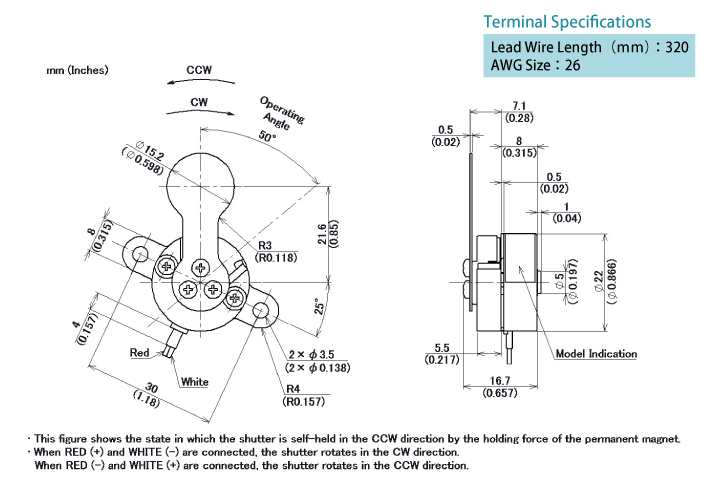

Shutter Dimensions		φ15.2（mm）
Operating Angle		50（°）
Life Cycle/Durability		5,000,000（cycles）
Response Speed	with Applied Voltage 12V DC	15（ms）or less

For improvement and other purposes, specifications, dimensions, etc. of this product are subject to change without notice.
