The most versatile model in RSU series that is employed in a wide range of applications.
(High-torque type RSU14/10-SAP1-T115 (operating angle 30°or less) is also available.)
| Heat-Resistant Class | Class E（120℃） |
|---|---|
| Coil Saturation Temperature Rise Δθs（at20℃） |
Δθs≒20×W（℃） K≒20（℃/watt） |

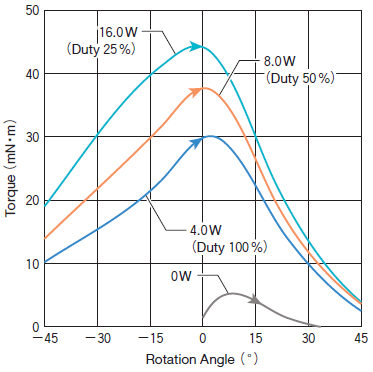

| Temperature Rise Time Constant τ | 5（minutes） |
| Insulation Resistance | 500V DC MEGA, 100MΩ or more |
| Dielectric Strength | 1000V AC, 50/60Hz, 1 minute |
| Rotor Inertia | 1.3（g・cm2） |
| Mass | 70（g） |
| Duty Cycle [%] | 100% | 50% | 25% | 10% | 5% |
|---|---|---|---|---|---|
| Continuous | Intermittent | ||||
| Max. ON Time [sec.] | ∞ | 150.0 | 75.0 | 30.0 | 15.0 |
| Power at 20℃ [W] | 4.0 | 8.0 | 16.0 | 40.0 | 80.0 |
| Resistance at 20℃ [Ω] | Voltage [VDC] | ||||
| 13.5 | 7.3 | 10.3 | 14.6 | 23.2 | 32.8 |
| 60.0 | 15.4 | 21.9 | 30.9 | 48.9 | 69.2 |
| 115.0（standard） | 21.4 | 30.3 | 42.8 | 67.8 | 95.9 |
| 140.0 | 23.6 | 33.4 | 47.3 | 74.8 | 105.8 |

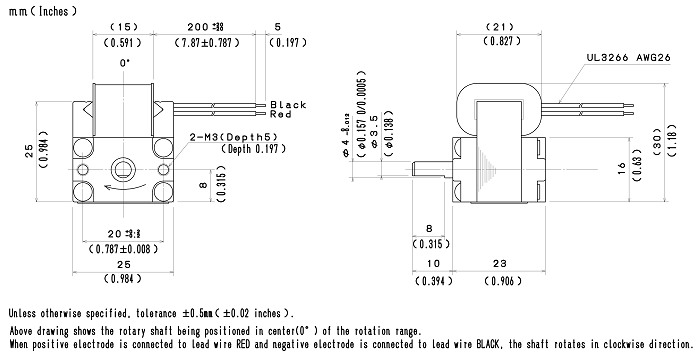

For improvement and other purposes, specifications, dimensions, etc. of this product are subject to change without notice.
