Micro rotary solenoid designed as a mechanical drive for compact equipment with limited space inside.
Approximately one-quarter in size (volume) compared to our first micro model, RSR10/15.
Ideal for high-speed shutters of optical systems.

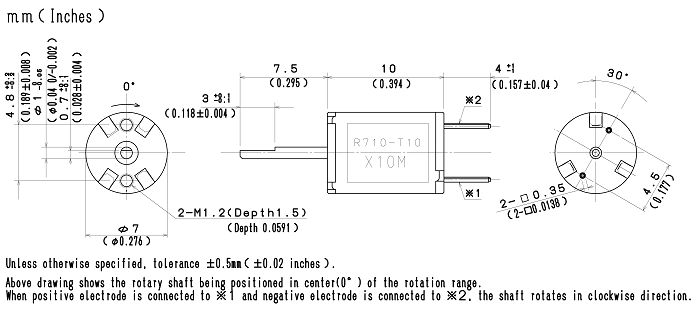

| Heat-Resistant Class | Class E （120 ℃） |
|---|---|
| Coil Saturation Temperature Rise Δθs（ at 20℃） |
Δθs≒59×W （℃） K≒59（ ℃/watt） |

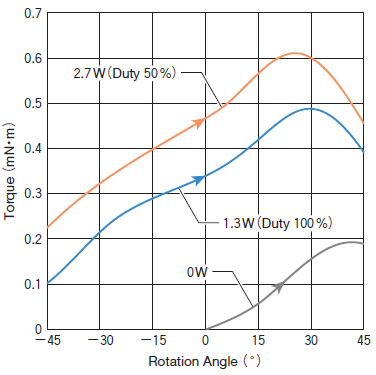

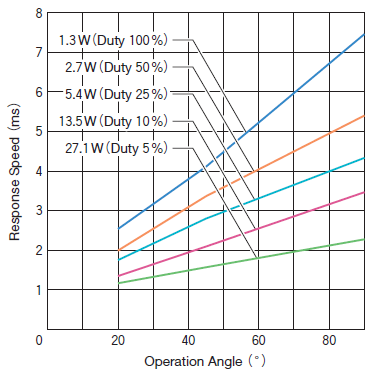

| Temperature Rise Time Constant τ | 1（minutes） |
| Insulation Resistance | 500V DC MEGA, 5MΩ or more |
| Dielectric Strength | 250V AC, 50/60Hz, 1 minute |
| Rotor Inertia | 0.0015（ g・cm2） |
| Mass | 1.5（g） |
| Duty Cycle [%] | 100% | 50% | 25% | 10% | 5% |
|---|---|---|---|---|---|
| Continuous | Intermittent | ||||
| Max. ON Time [sec.] | ∞ | 30.1 | 15.0 | 6.0 | 3.0 |
| Power at 20℃ [W] | 1.3 | 2.7 | 5.4 | 13.5 | 27.1 |
| Resistance at 20℃ [Ω] | Voltage [VDC] | ||||
| 9.5（standard） | 3.0 | 5.0 | 7.1 | 11.3 | 16.0 |
| 12.0 | 3.9 | 5.6 | 8.0 | 12.7 | 18.0 |
| 15.2 | 4.4 | 6.4 | 9.0 | 14.3 | 20.2 |
For improvement and other purposes, specifications, dimensions, etc. of this product are subject to change without notice.
