High-power, high-responsiveness achieved by our original technology including multi-layered yoke and high-power rare-earth magnet.
This most generic series are used as a high-speed mechanical drive in a wide range of applications in various labor-saving equipment and automated machinery.
| Heat-Resistant Class | Class E（120℃） |
|---|---|
| Coil Saturation Temperature Rise Δθs（at20℃） |
Δθs≒11×W（℃） K≒11（℃/watt） |

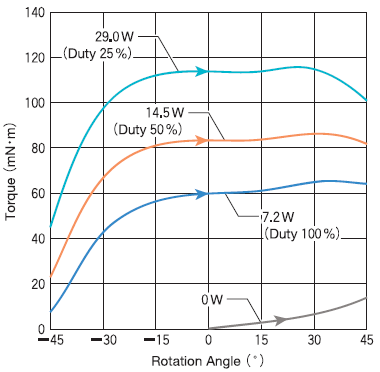

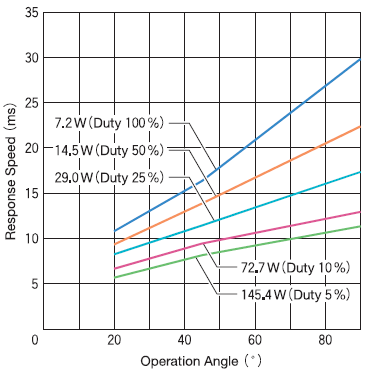

| Temperature Rise Time Constant τ | 6（minutes） |
| Insulation Resistance | 500V DC MEGA, 100MΩ or more |
| Dielectric Strength | 1000V AC, 50/60Hz, 1 minute |
| Rotor Inertia | 9（g・cm2） |
| Mass | 185（g） |
| Duty Cycle [%] | 100% | 50% | 25% | 10% | 5% |
|---|---|---|---|---|---|
| Continuous | Intermittent | ||||
| Max. ON Time [sec.] | ∞ | 180.5 | 90.2 | 36.0 | 18.0 |
| Power at 20℃ [W] | 7.2 | 14.5 | 29.0 | 72.7 | 145.4 |
| Resistance at 20℃ [Ω] | Voltage [VDC] | ||||
| 5.6 | 6.3 | 9.0 | 12.7 | 20.1 | 28.5 |
| 15.0（standard） | 10.3 | 14.7 | 20.8 | 33.0 | 46.7 |
| 23.0 | 12.8 | 18.2 | 25.8 | 40.8 | 57.8 |
| 58.0 | 20.4 | 29.0 | 41.0 | 64.9 | 91.8 |
For improvement and other purposes, specifications, dimensions, etc. of this product are subject to change without notice.
