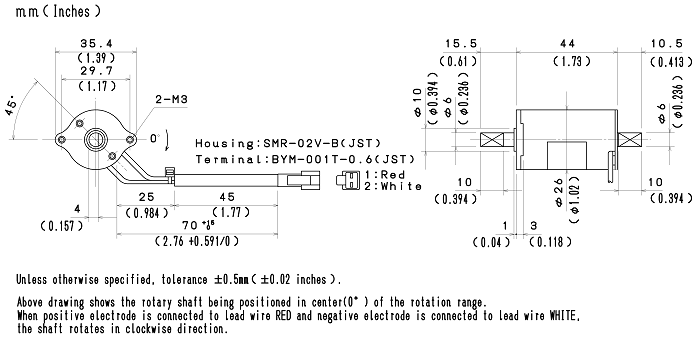

The standard model of RSR14/20 series.
Equipped with shafts on both sides, it is suitable for attaching sensors and other external devices.
Ball bearings are employed in standard thus making the solenoid long life.
| Heat-Resistant Class | Class H（180℃） |
|---|---|
| Coil Saturation Temperature Rise Δθs（at20℃） |
Δθs≒20×W（℃） K≒20（℃/watt） |
| Temperature Rise Time Constant τ | 5（minutes） |
| Insulation Resistance | 500V DC MEGA, 100MΩ or more |
| Dielectric Strength | 1000V AC, 50/60Hz, 1 minute |
| Rotor Inertia | 2.1（g・cm2） |
| Mass | 80（g） |
| Duty Cycle [%] | 100% | 50% | 25% | 10% | 5% |
|---|---|---|---|---|---|
| Continuous | Intermittent | ||||
| Max. ON Time [sec.] | ∞ | 150.0 | 75.0 | 30.0 | 15.0 |
| Power at 20℃ [W] | 7.0 | 14.0 | 28.0 | 70.0 | 140.0 |
| Resistance at 20℃ [Ω] | Voltage [VDC] | ||||
| 10 | 8.3 | 11.8 | 16.7 | 26.4 | 37.4 |
| 20 | 11.8 | 16.7 | 23.6 | 37.4 | 52.9 |
| 30 | 14.4 | 20.4 | 28.9 | 45.8 | 64.8 |
| 32（standard） | 14.9 | 21.1 | 29.9 | 47.3 | 66.9 |

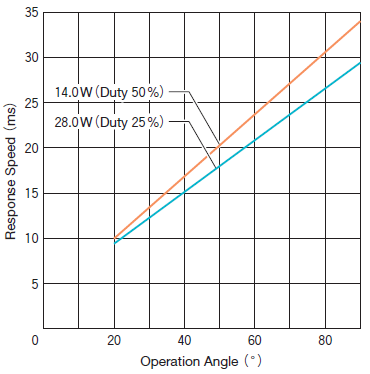

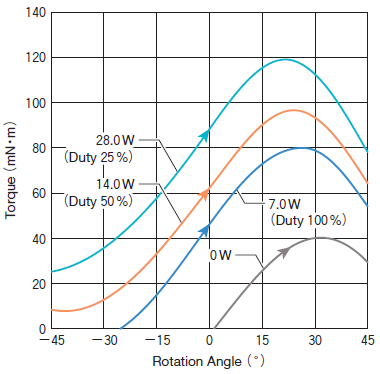

For improvement and other purposes, specifications, dimensions, etc. of this product are subject to change without notice.
