Bi-Stable rotary solenoid


Large size rotary solenoid for use in factory automation and conveying equipment industries.
Because it is electromagnetically driven, it does not require the air piping or compressor necessary for pneumatically driven actuators.

Main Specifications

Heat-Resistant Class Class E(120℃)
Coil Saturation Temperature Rise
Temperature Rise Time Constant τ 11(minutes)
Insulation Resistance 500V DC MEGA, 100MΩ or more
Dielectric Strength 1000V AC, 50/60Hz, 1 minute
Rotor Inertia 350(g・cm2
Mass 1,700(g)

Coil Data

Duty Cycle [%] 100% 50% 25% 10% 5%
Continuous Intermittent
Max. ON Time [sec.] 330.2 165.1 66.0 33.0
Power at 20℃ [W] 19.5 39.0 78.0 195.1 390.2
Resistance at 20℃ [Ω] Voltage [VDC]
3.0 7.6 10.8 15.2 24.1 34.2
6.0(standard) 10.8 15.2 21.6 34.2 48.3

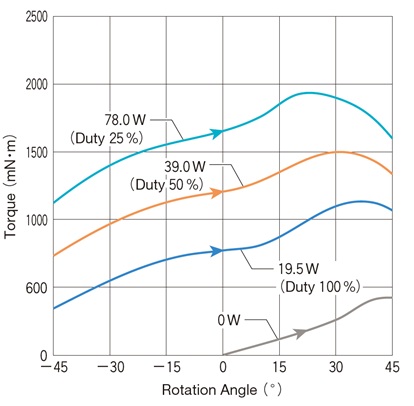

Torque Data

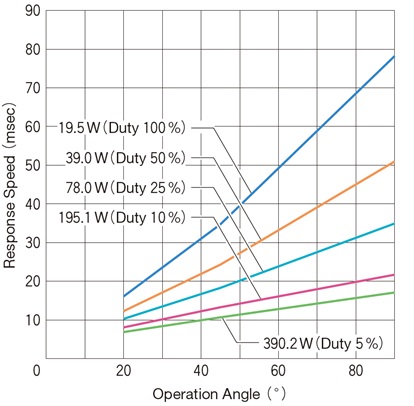

Response Data(Load Inertia:425.41g·cm2

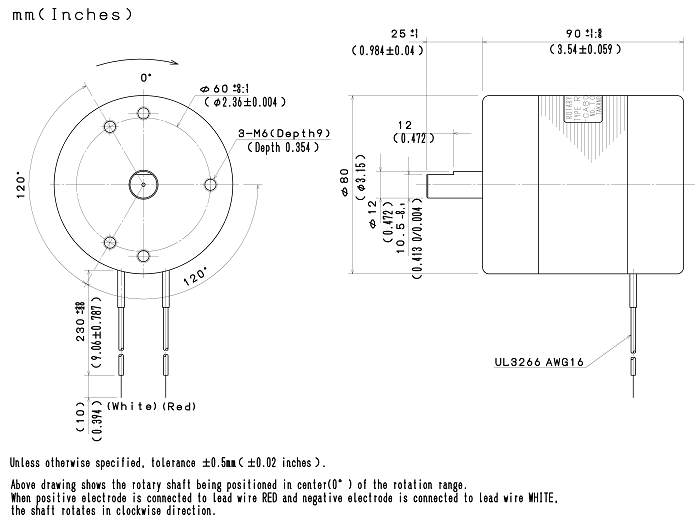

External Dimensions

For improvement and other purposes, specifications, dimensions, etc. of this product are subject to change without notice.
