High-power, high-responsiveness achieved by our original technology including multi-layered yoke and high-power rare-earth magnet.
This most generic series are used as a high-speed mechanical drive in a wide range of applications in various labor-saving equipment and automated machinery.
| Heat-Resistant Class | Class E（120℃） |
|---|---|
| Coil Saturation Temperature Rise Δθs（at20℃） |
Δθs≒6.5×W（℃） K≒6.5（℃/watt） |

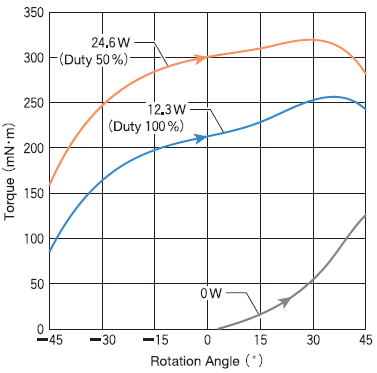

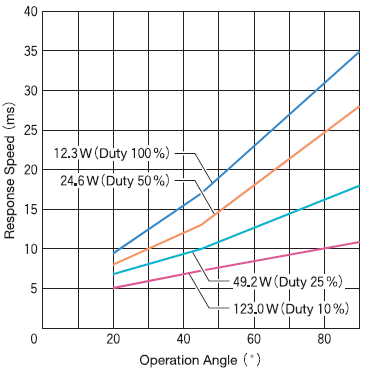

| Temperature Rise Time Constant τ | 8（minutes） |
| Insulation Resistance | 500V DC MEGA, 100MΩ or more |
| Dielectric Strength | 100V AC, 50/60Hz, 1 minute |
| Rotor Inertia | 36（g・cm2） |
| Mass | 530（g） |
| Duty Cycle [%] | 100% | 50% | 25% | 10% | 5% |
|---|---|---|---|---|---|
| Continuous | Intermittent | ||||
| Max. ON Time [sec.] | ∞ | 240.1 | 120.0 | 48.0 | 24.0 |
| Power at 20℃ [W] | 12.3 | 24.6 | 49.2 | 123.0 | 246.1 |
| Resistance at 20℃ [Ω] | Voltage [VDC] | ||||
| 9.0 | 10.5 | 14.8 | 21.0 | 33.2 | 47.0 |
| 18.0 | 14.8 | 21.0 | 29.7 | 47.0 | 66.5 |
| 29.0 | 18.8 | 26.7 | 37.7 | 59.7 | 84.4 |
| 36.0（standard） | 21.0 | 29.7 | 42.0 | 66.5 | 94.1 |

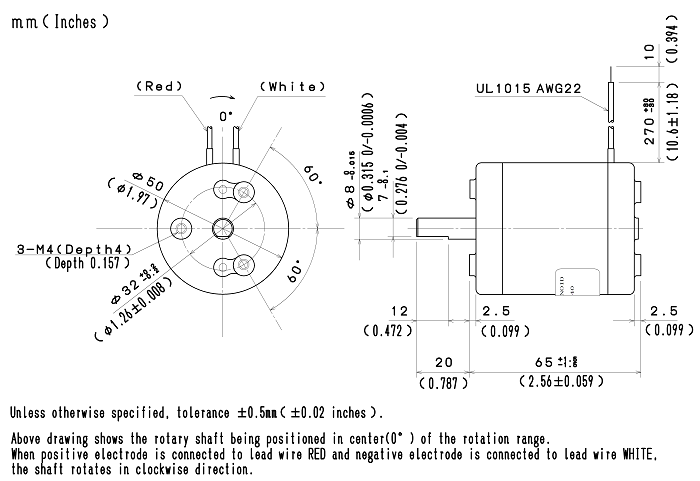

For improvement and other purposes, specifications, dimensions, etc. of this product are subject to change without notice.
