High-power, high-responsiveness achieved by our original technology including multi-layered yoke and high-power rare-earth magnet.
This most generic series are used as a high-speed mechanical drive in a wide range of applications in various labor-saving equipment and automated machinery.
| Heat-Resistant Class | Class E（120℃） |
|---|---|
| Coil Saturation Temperature Rise Δθs（at20℃） |
Δθs≒7.0×W（℃） K≒7.0（℃/watt） |
| Temperature Rise Time Constant τ | 7（minutes） |
| Insulation Resistance | 500V DC MEGA, 100MΩ or more |
| Dielectric Strength | 1000V AC, 50/60Hz, 1 minute |
| Rotor Inertia | 18（g・cm2） |
| Mass | 280（g） |
| Duty Cycle [%] | 100% | 50% | 25% | 10% | 5% |
|---|---|---|---|---|---|
| Continuous | Intermittent | ||||
| Max. ON Time [sec.] | ∞ | 210.5 | 105.0 | 42.0 | 21.0 |

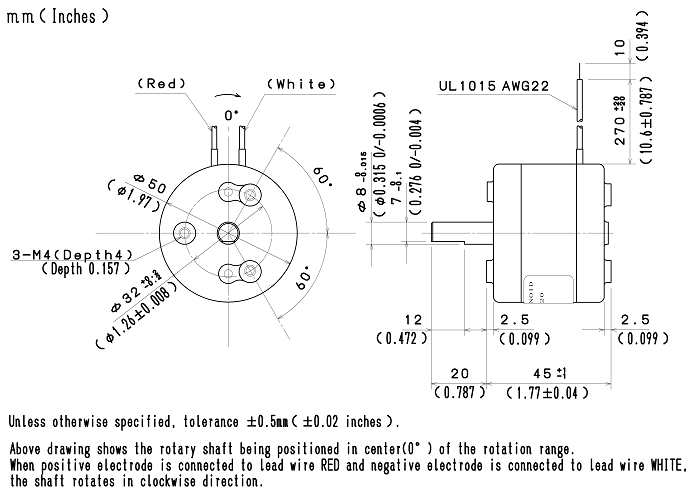

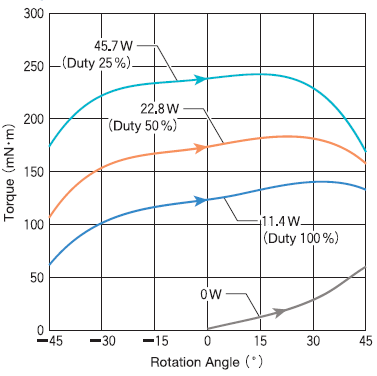

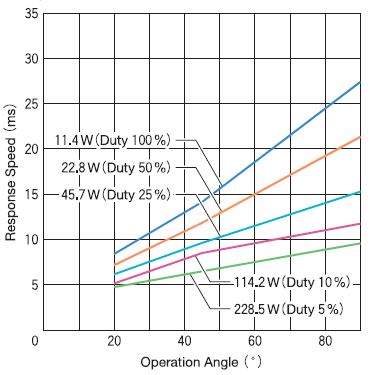

| Power at 20℃ [W] | 11.4 | 22.8 | 45.7 | 114.2 | 228.5 |
| Resistance at 20℃ [Ω] | Voltage [VDC] | ||||
| 6.2（standard） | 8.4 | 11.8 | 16.8 | 26.6 | 37.6 |
| 12.0 | 11.6 | 16.5 | 23.4 | 37.0 | 52.3 |
| 25.0 | 16.8 | 23.8 | 33.8 | 53.4 | 75.5 |
| 44.0 | 22.3 | 31.6 | 44.8 | 70.8 | 100.2 |
For improvement and other purposes, specifications, dimensions, etc. of this product are subject to change without notice.
