A highly-durable rotary solenoid designed for a long service life.
Its bearing can be replaced from outside of the device.
This will enable its usage semi-permanent.

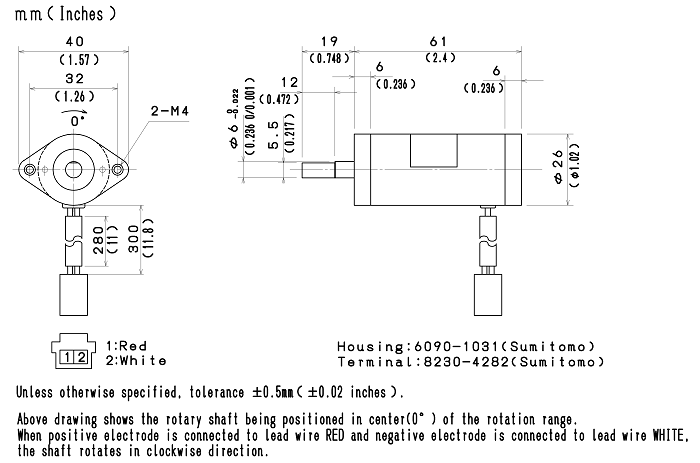

| Heat-Resistant Class | Class E（120℃） |
|---|---|
| Coil Saturation Temperature Rise Δθs（at20℃） |
Δθs≒10×W（℃） K≒10（℃/watt） |
| Temperature Rise Time Constant τ | 9（minutes） |
| Insulation Resistance | 500V DC MEGA, 100MΩ or more |
| Dielectric Strength | 1000V AC, 50/60Hz, 1 minute |
| Rotor Inertia | 6.2（g・cm2） |
| Mass | 135（g） |
| Duty Cycle [%] | 100% | 50% | 25% | 10% | 5% |
|---|---|---|---|---|---|
| Continuous | Intermittent | ||||
| Max. ON Time [sec.] | ∞ | 270.0 | 135.0 | 54.0 | 27.0 |
| Power at 20℃ [W] | 8.0 | 16.0 | 32.0 | 80.0 | 160.0 |
| Resistance at 20℃ [Ω] | Voltage [VDC] | ||||
| 10 | 8.9 | 12.6 | 17.8 | 28.2 | 40.0 |
| 20（standard） | 12.6 | 17.8 | 25.2 | 40.0 | 56.5 |
| 30 | 15.4 | 21.9 | 30.9 | 48.9 | 69.2 |
| 32 | 16.0 | 22.6 | 32.0 | 50.5 | 71.5 |

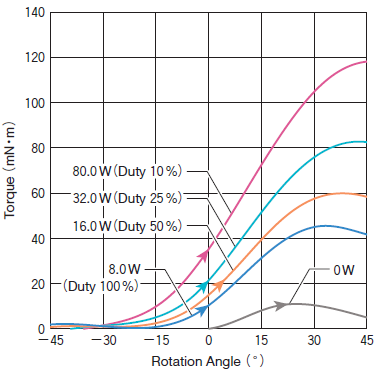

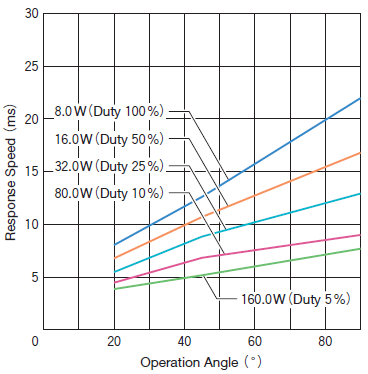

For improvement and other purposes, specifications, dimensions, etc. of this product are subject to change without notice.
