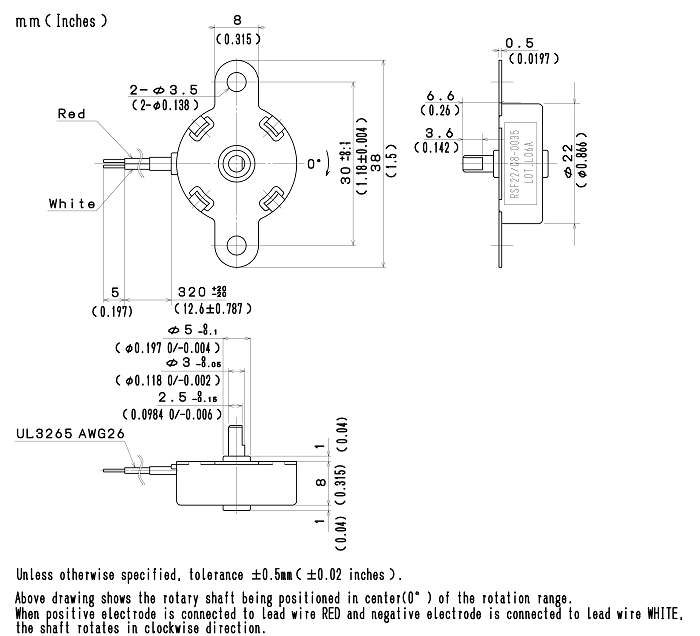

The thinnest (slimmest) type in the series. This model is suitable for installation in narrow limited space.
Suitable for mechanical in/out of optical parts (filters and lenses) and for use in shutters.
| Heat-Resistant Class | Class H （180℃） |
|---|---|
| Coil Saturation Temperature Rise Δθs（at 20℃） |
Δθs ≒ 36 ×W（℃） K≒36（℃/watt） |

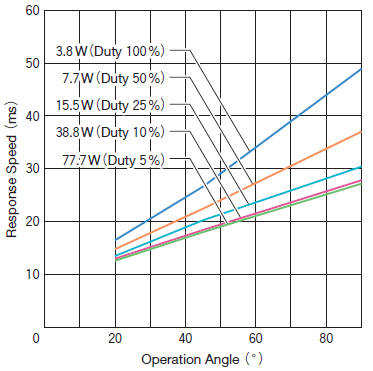

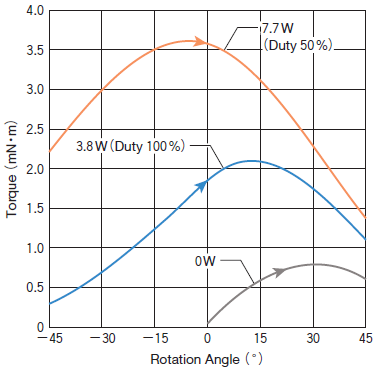

| Temperature Rise Time Constant τ | 6（minutes） |
| Insulation Resistance | 500V DC MEGA, 100MΩ or more |
| Dielectric Strength | 1000V AC, 50/60Hz, 1 minute |
| Rotor Inertia | 0.07（g・cm2） |
| Mass | Approx. 15（g） |
| Duty Cycle [%] | 100% | 50% | 25% | 10% | 5% |
|---|---|---|---|---|---|
| Continuous | Intermittent | ||||
| Max. ON Time [sec.] | ∞ | 181.8 | 90.3 | 36.0 | 18.0 |
| Power at 20℃ [W] | 3.8 | 7.7 | 15.5 | 38.8 | 77.7 |
| Resistance at 20℃ [Ω] | Voltage [VDC] | ||||
| 13.0 | 7.0 | 10.0 | 14.1 | 22.4 | 31.7 |
| 35.0（standard） | 12.0 | 16.4 | 23.2 | 36.8 | 52.1 |
For improvement and other purposes, specifications, dimensions, etc. of this product are subject to change without notice.
