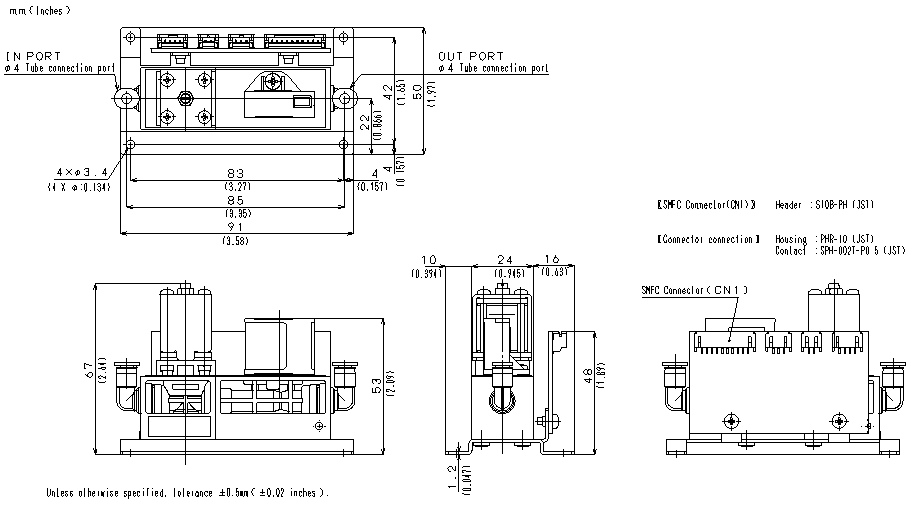

| Model Number | SMFC-0005 | SMFC-0020 | |
|---|---|---|---|
| Valve type | Direct Operated solenoid valve | ||
| Valve Operation | NC（Normally Closed） | ||
| Standard compatible gas type | Air/O2/N2 | ||
| Fluid Temperature | 0 ～ 50℃ | ||
| Rated Voltage | 12V DC | ||
| Standard full-scale flow rate | 5L/min | 20L/min | |
| Flow control range (Air) |
Control range | 4~100%F.S. (0.2~5L/min) | 2~100%F.S. (0.4~20L/min) |
| Response | Within 2.0s at setting ±2%F.S.(Typical) | ||
| Repeatability (at20℃) |
±5.0%R.D. (2＜Q≦5L/min) ±3.0%F.S.(0.2＜Q≦2L/min) | ±5.0%R.D. (10＜Q≦20L/min) ±3.0%F.S.(0.4＜Q≦10L/min) | |
| reproducibility | ±1.5%F.S. | ||
| Pressure | Operating differential pressure | 0.05～0.2MPaG | 0.15～0.3MPaG |
| Pressure resistance | 0.3MPaG (flow sensor section 0.05MpaG) |
||
| Allowable Operating temperature | 5 ～ 50℃ | ||
| Allowable Operating humidity | 30 ～ 85%RH(non-condensing) | ||
| Flowrate setup (Choice) |
Analog input | Setup input voltage 1~5V | |
| Serial communication | RS232C | ||
| Setup resolution |
0.01L/min | ||
| Connector connection | Header | S10B-PH(JST) | |
| Housing | PHR-10(JST) | ||
| Contact | SPH-002T-P0.5(JST) | ||
| Material of gas-contacting parts | PPS/Stainless steel/Brass/Viton/Silicon(sensor section) | ||
| Fitting Size | IN：φ4 or φ6 OUT：φ4 or φ6 | ||
| Mounting Orientation | at will | ||
| Mass(weight) | Approx. 200g | ||
For improvement and other purposes, specifications, dimensions, etc. of this product are subject to change without notice.
