Proportional Control Solenoid Valve
Create the optimal flow and maximize fluid value.
Main Product Lineup
Problem Solving Examples
Do you experience such problems?
Difficulty in selecting a model
Please let us know the type of gas, flow rate, and pressure you are considering. Our staff will assist you in selecting the optimal model!
Submit Your InquiryLow yield due to variations among proportional valves
Through a unique flow rate adjustment process, individual differences are minimized.
See Product FeaturesUnstable flow rate due to temperature and pressure
Achieve stable control with a proportional valve and dedicated PWM controller.
See ApplicationsPSV Series: 3 Key Features

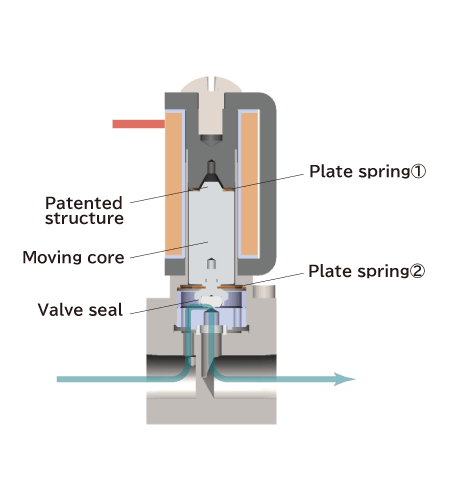

| Point 1: "Smooth Proportional Drive" & "Low Particles" | |
|---|---|
| The moving core is guided by two plate springs and supported at the center, ensuring a sliding-free structure. | |
Merit
|
No wear occurs, maintaining stable flow characteristics even after repeated use. Safe for clean environments as no wear particles are generated. |
| Point 2: "Precise Control with High Resolution" | |
| A patented unique suction structure achieves high-resolution proportional characteristics in response to the input signal. | |
Merit
|
Responds to even slight changes in electrical signals, enabling precise control of microflow rates and pressures. Offers stable, high-precision control for both research and mass production. |
| Point 3: "Stable Quality with Minimal Variation" | |
| We minimize individual differences by adjusting the flow characteristics of every unit through a unique proprietary process. | |
Merit
|
Eliminates the need for characteristic correction for each device, reducing assembly and setup time. Improved control accuracy prevents inconsistencies in equipment quality. |
Major Application Fields

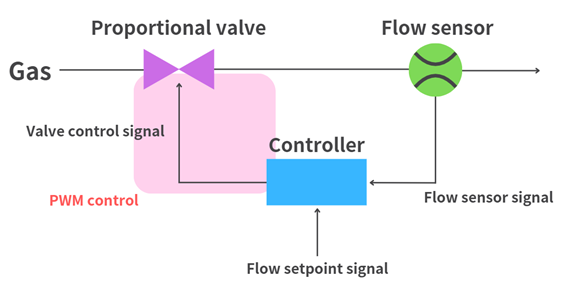

Applications include "flow control" and "pressure control." Flow and pressure can vary due to factors like source pressure and ambient temperature. As shown, by integrating a proportional valve with a sensor and connecting an electronic controller, you can freely regulate flow and pressure according to a set signal.
Semiconductor
Strict control of temperature, pressure, and gas concentration is vital for microfabrication. Our proportional valves provide stable process control, improving finish accuracy and yield rates.
Analytical
When handling minute samples and reagents, even the slightest flow variation can affect results. Our proportional valves ensure a stable environment with fast, precise control, enhancing measurement reliability.
Medical
In life-critical applications, proportional valves respond instantly to changes in a patient's condition with real-time adjustments, maintaining stable flow and pressure for a safe and reliable treatment environment.
Industrial
Combined with closed-loop control, our valves prevent human error and minimize quality variations. The precise control of proportional valves achieves both high quality and efficiency.
Product Lineup
From ultra-compact to high-flow models, we offer the optimal size for your application.
All products feature a sliding-free structure for high accuracy and long life.
PSV-01T
One of the industry's "smallest" and "lightest" proportional control valves. Economy model.
PSV-03T
Compact model with stainless steel body.
PSV-200T
Compact valve for high-flow applications, ideal for controlling flow rates around 200 L/min.
PSV-09P
Built with SEMI-compliant high-purity materials. Features electropolished wetted parts for stable, high-precision pressure/flow control.
Proportional Control Board
Dedicated PWM controller for proportional control valves. Available with or without a case.
Start Maximizing Your Fluid Value Today
Our expert engineers will propose the optimal solution for your application.
Feel free to request technical documents, quotes, or custom specification inquiries.
For Urgent Inquiries
+81-3-3253-4666
Weekdays 9:00 - 18:00 (JST)
