3-Way Solenoid Valve    W13A-35A


Valve typediaphragm type direct operated poppet
Valve operationnormally closed
Number of ports3 way

air, water, DI water (pure water)
diluent , cleaning fluid

Operating pressure range

-75kPa to 0.25MPa
Tube connectiontube inner diameter 2mmφ
Orifice diameter1.3mm
Response time20ms or less(at pneumatic pressure)

zero leakage, either external or

internal(at water pressure)

Proof pressure0.375Mpa

Ambient temperature

0 to 50℃

Fluid temperature

0 to 50℃(No condensation)

Volume of valve chamber

20μL or less

Mounting orientation

EnclosureIP40 or equivalent
Rated voltage24 VDC

Allowable voltage fluctuation

±10% of rated voltage

Type of coil insulation

Class F(155℃)

Power consumption

In-rush : 3W / Holding : 1W

Coil switching noise55dB or less
Material for the wetted parts

body:PEEK / diaphragm:FKM

3 Port Solenoid Valve W13A-35A

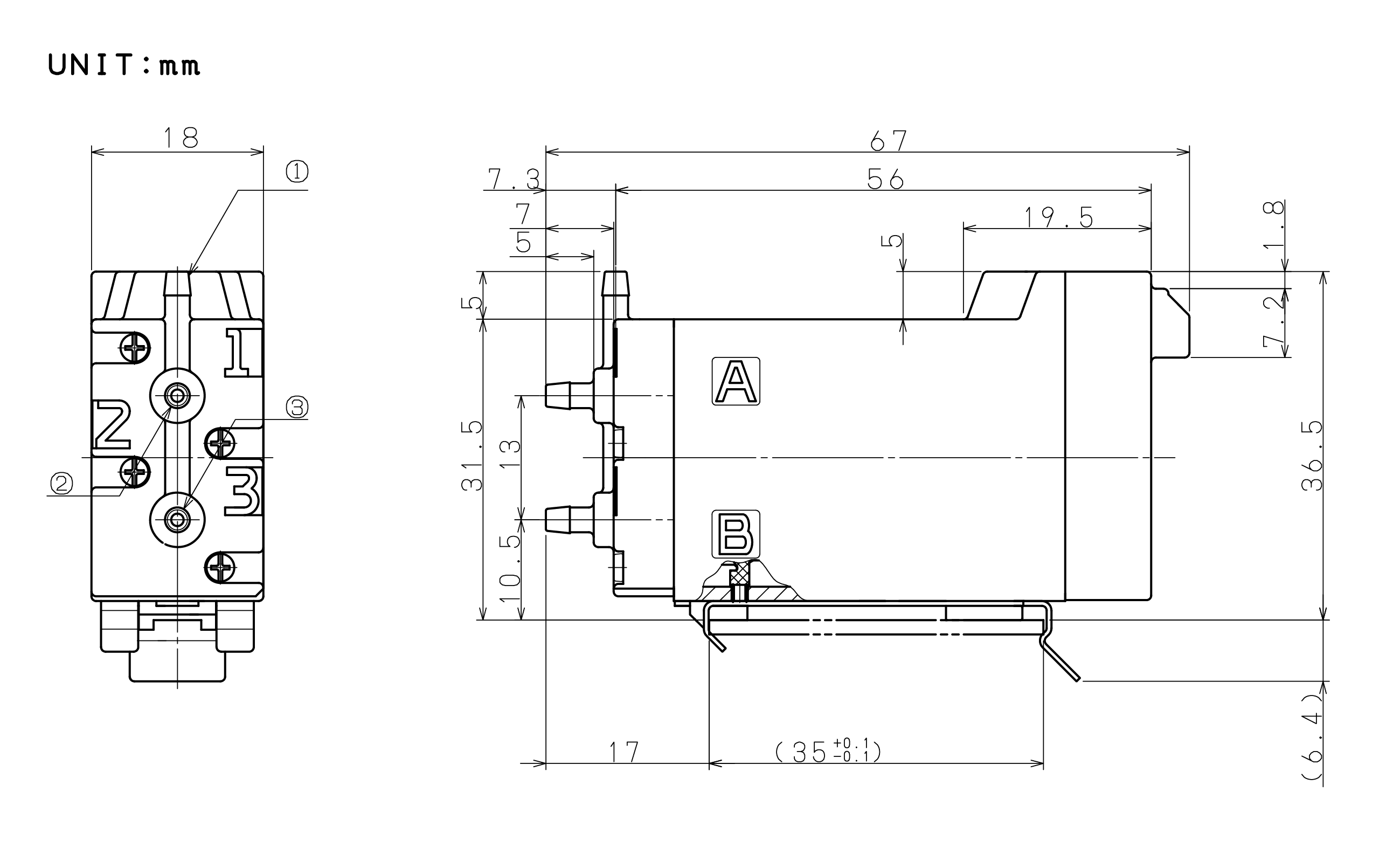

3 Port Solenoid Valve W13A-35A Dimensions
